how to use Winxvideo AI
Winxvideo AI

Winxvideo AI Guide

1. Get Started
1-1. Download

Click the button below to free download the installation package of Winxvideo AI.

Supported OS:

For Windows: Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11 (64 bit version).
For Mac: Mac OS X 10.6 to macOS Sonoma (14). Please note: AI features are currently unavailable for Mac version.

1-2. Install

1 Double click "winxvideo-ai.exe" to install it.

open Winxvideo AI EXE

2 Click "Yes" if the User Account Control (UAC) window pops up and then go ahead.

3 Check "I agree to the User License Agreement" and then click "INSTALL" to set it up on PC.

allow Winxvideo AI installation

4 When the installation is completed, click "Launch" to open up Winxvideo AI (trial version).

Start Winxvideo AI - finish installation

5 Launch WinX (trial version) and you will see the main interface as below, with 5 sections provided - Video AI, Image AI, Video Converter,Downloader, and Recorder.

main ui of Winxvideo AI
1-3. Trial Limits

The trial version of Winxvideo AI has the following limitations:

1 The trial version includes restrictions: it allows to enhance, edit, and convert 5-minute videos, applies a watermark to your screen recordings, enhance 5 images, and download 10 files, all for evaluation purposes.

2 No free update to the latest full version.

3 Advanced features are not available.

※ Tips: You can upgrade to full version to remove the limits. Also, the full version will constantly upgrade to latest version for free and provide technical support. Get to know the detailed trial limits >>

Here is how you can upgrade to Winxvideo AI full version.

1: Click "Buy Now" below to purchase the full license code.

2: Or click "Register" / "Cart" button on the main UI and click "Buy Now".

Buy Full Version of Winxvideo AI
1-4. Register

※ You will receive product information with license code via email once you complete the order.

1 Open Winxvideo AI, click "Register" button.

2 Input your "Licensed Email" and "License Code".

3 Click "Activate" to complete the registration process.

※ There are no spaces in the license code field. It's highly recommended to copy & paste your code to avoid any typos.

※ Please make sure you have proper Internet connection when registering Winxvideo AI program.

Register Winxvideo AI

4 When you have registered successfully, you can enjoy the full Winxvideo AI with the main UI below.

UI of Full Version Winxvideo AI
1-5. Set Hardware Acceleration

※ Check whether your PC is hardware accleration supportable by getting its hardware information.

1 Open Settings and click "Option" right near "Hardware Accelration Engine: Nvidia / Intel / AMD".

2 Go to "Winxvideo AI - Video" and click "Option" right near "Hardware Accelration Engine: Nvidia / Intel / AMD".

Check Hardware Info with Winxvideo AI
2. AI Tools

The latest AI tools take advantages of cutting-edge deep learning techs and make it easy to upscale video, enhance image, boost frame rate, and stabilize shaky footage efficiently. Whether you want to restore your old content, remove noise, blur, reduce wobble, smoothen your fast-paced action, or upscale your video to higher resolution, Winxvideo AI is here for you, delivering a cinema-grade quality with full GPU accelerated.

Currently, the AI tools are available on Windows version only. Mac version is coming soon. Stay tuned.

Important: When dealing with the AI-related tasks, hardware plays a crucial role in determining the efficiency and speed of the processing. Make sure your computer meets the basic system requirements as listed below. The higher the better. Otherwise, you can't utilize these AI tools, you may get errors like "no Vulkan found", "No device found", or your low-end computer will get crashed during the video/image enhancement.

Minimal system requirements when using the AI tools:

  • Vulkan: 1.2.x or higher
  • OpenCL: 1.0 or higher
  • Hard Disk Space: 1GB or higher
  • RAM:2GB or higher

You can also take advantage of NVIDIA TensorRT™ for optimized deep learning inference to enhance videos and images. For detailed system requirement, you can check here.

2-1.Upscale Video

Winxvideo AI is an incredible AI-powered video enhancer and upscaler, making old videos back to life. Its AI models trained by the advanced deep learning algorithms is exceptional at scaling video up by 200-400%, enhancing video resolution to 4K, and therefore bringing old memories new again!

1 Click "Video AI" button to enter video upscaling window.

enhance video

2 Tap "Add Video" icon at the bottom of the window to load your input video file. Or just drag and drop the video you want to enhance to the main interface. You can preview your enhanced video effect via the preview compare window or full window.

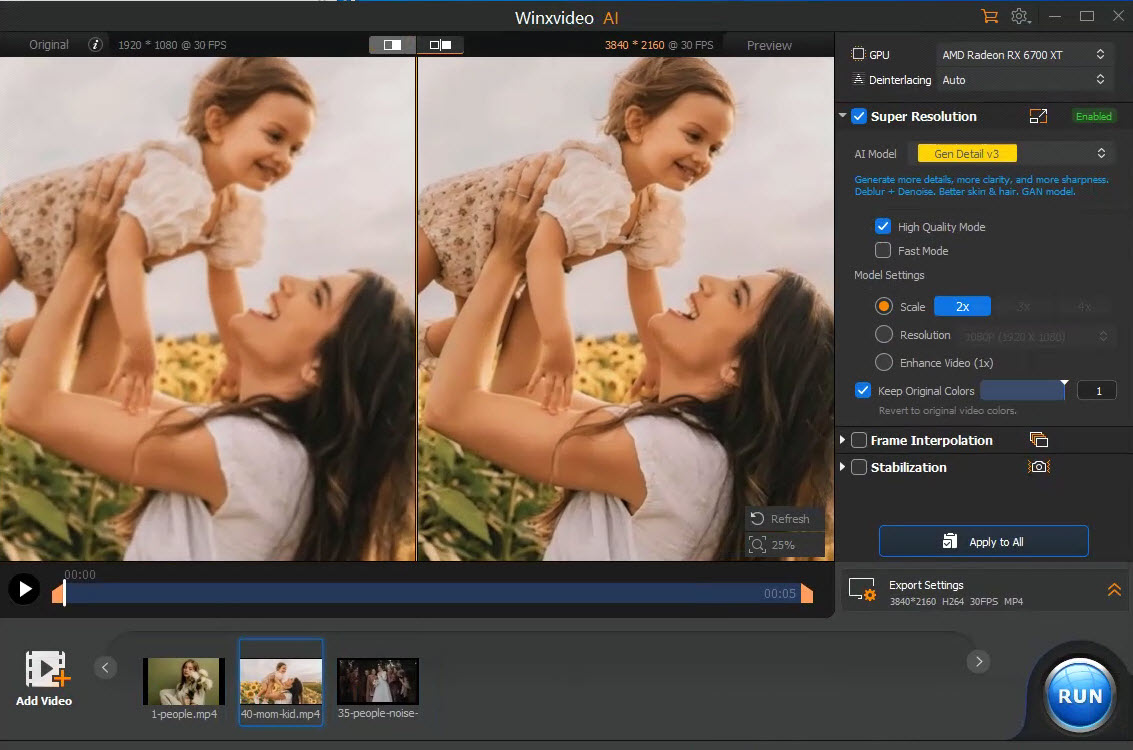

3 Tick "Super Resolution" option and choose your preferred AI model. Winxvideo AI offers 4 dedicated AI models to help you enhance and upscale different types of videos.

  • Gen Detail v2: This AI model excels in adding authentic details while improving video clarity and sharpness. It excels in enhancing videos that require meticulous attention to details like skin, hair, animal fur, architectural textures, etc, while addressing blur and noise issues in bad-quality contents.
  • Real Smooth v2: This AI model specializes in rendering smoother, clearer, and brighter videos, and restoring original. This AI model is tailor-made for enhancing contents with relatively fewer details, such as 2D contents, glass surfaces, smooth textures, and line drawings.
  • Anime: The AI model is tailor-made for upscaling and denoising anime and cartoons.
  • Zyxt: It is designed for enhancing and upscaling photorealistic photos of low resolution, producing realistic and visually appealing results with improved detail and sharpness.
Winxvideo AI model

4 Choose a quality mode or speed mode based on your preference.

  • Fast Mode: Prioritize speed for rapid processing, ideal for speeding up computer-intensive projects and enhancing large video files quickly.
  • High Quality Mode: Focus on superior visual quality, delivering exceptional details and enhanced clarity.
denoise level

5 Do some model settings.

5.1. Choose the Scale or Resolution presets you need. You can opt for 2X, 3X or 4X. The default setting goes to 2X. For video resolution below 1080p, you’re advised to choose 3X or 4X at your disposal. As for video resolution 1080p or even higher, 2X is the best option. Or you can choose the Resolution profiles, ranging from 480p, 720p, 1080p, 2k, to 4K.

Generally, the higher the multiplier, the higher the resolution clarity, but it may appear less natural. It is recommended to try different settings and preview to achieve the best results. In most cases, a two-step 200% multiplier yields better results than a one-time 400% multiplier.

5.2. The option "Enhance Video (1X)" is used in cases where the resolution remains unchanged, or the original resolution is relatively high, and the goal is to remove noise, blur, pixlation, and enhance the image quality without upscaling.

upscale video 2x

6 Trim your video length before video upscaling and enhancing. Move the progress bar to cut off the unnecessary clips and keep your desired video duration.

trim video

7 Select output video codec, quality level and GOP. Move your mouse to the lower right-hand corner of the interface and tap Export Settings, where you choose output video codec H264 or HEVC, quality level (from Low to Highest) and GOP.

export video

Note: GOP stands for "Group of Pictures". In video coding, it's a collection of pictures in a coded video stream that specifies the order of frames. In general, the smaller the value, the higher the quality, and the larger the value, the greater the compression. For videos with minimal motion, a value between 90 and 250 is generally sufficient; for fast-paced scenes with frequent scene changes or for GOP values used in post-production processing, a value of 30-60 is common.

8 Click "Browse" button to choose a file folder for the output video storage.

9 Hit the "RUN" button to begin enhancing video quality at GPU hardware accelerated speed.

upscaling video
2-2.Enhance Image

Winxvideo AI utilizes cutting-edge AI technology to refine rough images, sharpen blurry photos, and upscale low-resolution images up to 4 times for high-quality enhancement. Use the following steps to enhance your images.

1 Click the "Image AI" button on the main interface and the Image AI window should appear.

image AI

2 Load the image file you'd like to enhance. You can directly drag the image and drop it to the window or click the "Add Image" button at the bottom to select an image file to import. You can select more than one image to import for batch processing.

3 Choose one AI model as per your needs. As it is mentioned above in video enhancing, Winxvideo AI is also integrated with the 4 dedicated AI models in Super Resolution during image enhancement.

  • You can opt for Gen Detail v2 model for added detail during image enhancing.
  • Choose Real Smooth v2 if you'd like to make a smoother, clearer, and brighter image that require less detail.
  • Select Anime if the input is an animated cartoon image.
  • Resort to the Zyxt model to enhance photorealistic photos of low resolution.
upscale reality

It's worth mentioning that the deblur and denoise technogies are implemented althrough the 4 AI models. That means you can remove blur and noise from the images whatever AI models you choose.

4 Adjust Super Resolution Model Settings: There are 3 settings available for you to choose.

  • For clean enlargement so that you can view your images on bigger screen, print them later, or so without distortion, check 'Scale' and select '2X', '3X', or '4X'. This program allows to scale up to 4K/8K/10K.
  • Opt for the 'Resolution' presets if you'd like to directly convert your image to 1080p, 2K, 4K.
  • To improve only the image quality, remove noise, grain, blur, and pixelation from your video, or restore your old images, check 'Enhance Image (1X)'.
scale or enhance image

5 Ajust Export Settings: Generally, default settings work fine. If needed, customize the image format(JPG or PNG), quality(0%-100%), and save location based on your preferences.

export image

6 Click the "RUN" button at the bottom right to initiate the image enhancement process. Once completed, check the effects of the enhanced image in the designated save folder or the preview window.

upscaling image
2-3. Frame Interpolation

Winxvideo AI Frame Interpolation function will automatically interpolate intermediate frames and increase the video frame rate (fps). By converting videos that are originally around 24fps or 30fps to high frame rates such as 60fps, 120fps, 240fps and beyond. Therefore, you can make choppy videos more natural, smooth, and create a stunning slow-mo video with ease.

This function is very suitable for anime and fast-moving action movie frame interpolation. Follow the steps below to boost your video frame rate with AI.

1 Navigate to AI Frame Interpolation window just by click "Video AI" on the main UI. After clicking on the "Video AI" button, wait for the Hardware Detection process to complete.

2 Click on the "Add Video" button or simply drag and drop a video you want to interpolate video frame to this program. Once loaded, you will get the operation panel.

frame interpolation

Section A: Import File

Click on the "Add Video" button to add more videos. Winxvideo AI lets you process more than one video at the same time, including video enhancement, frame interpolation, and video stabilization.

Section B: Playback Window

- The original video is displayed in the left window, and the interpolated video will be previewed in the right. You can choose the switch button to choose a preview mode.

frame interpolation preview

- You can see the original and interpolated video information at the top.

frame rate

- Click on the icon to see detailed information of your original video.

video information

Section C: Frame Interpolation Settings

Check "Frame Interpolation" box and you can start frame interpolating your video to 60fps, 120fps, 240fps, and even 480fps..

[GPU]: The hardware configuration of your PC will be automatically scanned, so select an available GPU.

Set FPS: Choose from 2X, 3X, 4X, and 5X to set the desired FPS.

  • [2X]: Double the frame rate. For example, you can change a video that originally had a frame rate of 30fps to 60fps.
  • [3X]: Triple the frame rate. For example, you can change a video that originally had a frame rate of 30fps to 90fps.
  • [4X]: Quadruple the frame rate. For example, you can change a video that originally had a frame rate of 30fps to 120fps.
  • [5X]: Quintuple the frame rate. For example, you can change a video that originally had a frame rate of 30fps to 150fps.
frame interpolation settings

Tip: To achieve the desired frame rate, one can repeat the process multiple times to reach the target frame rate. For instance, selecting 2X twice can convert a 30fps video to 60fps and subsequently to 120fps. This approach yields superior output quality compared to directly choosing 4X.

Skip Scene Changes: Whether to always compare the difference between two frames and not insert the frame if the difference is too large.

skip scene change

- When to disable it:

If the scene in the video does not change much, there is no need to check this option. For example, if the adjacent frames are all about playing basketball, Winxvideo AI will interpolate your video to give you a smoother and higher-quality video.

- When to enable it:

If the adjacent frames are very different, you are suggested to check this option to not perform frame interpolation to avoid artifacts. For example, the first frame is about playing basketball and the second is about playing table tennis where the two pictures change a lot, enable this option will tell Winxvideo AI’ frame interpolation function to skip the two frames.

When "Skip Scene Changes" is enabled, you can adjust the value of "Sensitivity" to detect scene changes.

[Sensitivity]: You can set the value from 0 to 100. A higher value will assume and skip more scene changes. The best sensitivity setting is 85.

If the value is low, you tell Winxvideo AI the scene changes less, and the frame interpolation will be more frequent. However, the actual scene changes a lot and should not be interpolated. As a consequence, the frame interpolation makes the video look bad.

If the value is set high, you tell Winxvideo AI that the scene changes a lot and it will skip the adjacent frames. The interpolation frequency is relatively low, which also avoids picture distortion.

Slow Motion: Slow down playback speed to see more details.

Create slow-motion video by choosing 2X, 3X, 4X, or 5X to slow down the playback speed. For example, you can create a slow-motion video about the passing through an egg, a water glass, a watermelon, etc.

make slow-mo video

Section D: Export Settings

Once you finish adjusting the frame interpolation settings, you can set the export settings.

  • Video Codec: You can choose H.264 or HEVC to encode your video.
  • Audio Codec: You can choose Passthrough or AAc to encode your audio. *Pass-through is a safe choice if you want to copy the source audio without changing it, and AAC is a safe choice if you want to reduce the file size while maintaining high audible quality.
  • Quality Level: You can choose output video quality from Low, Medium, High, and Highest.
  • GOP: The smaller the value, the higher the quality, and the higher the value, the greater the compression. For videos with little movement changes, 90-250 is generally sufficient; for videos with fast action and many scene changes, the GOP value is generally 30-60. If there is no particular need, simply use the default value of GOP as is.
  • Output Folder: Click on the "Browse" button to choose a folder on your computer to save the interpolated video. Or click on "Open" to open Winxvideo AI folder.
export video

3 Hit the RUN button to start the frame interpolating your video with Winxvideo AI.

Note: Your export video will be saved in MP4 format. If you need another format, you can use Winxvideo AI’s "video conversion" function.

2-4.Stabilize Video

Winxvideo AI utilizes advanced AI algorithms and GPU hardware acceleration for efficient video stabilization. Offering four presets, the software simplifies the process for you. You can choose based on your preferences: optimal stabilization, faster processing speed, minimal cropping, or a balanced approach among stabilization, speed, and cropping. Selecting a preset starts the video analysis and stabilization process without the need for complex parameters. Additionally, you have the option to customize border color fill, cropping method, and crop ratio.

1 Select "Video AI" from the main interface to access the video stabilizer tool.

2 Drag and drop the video you wish to stabilize into the pop-up window. Alternatively, you can click the "Add Video" button at the bottom left corner to load target videos.

stabilize video


  • You are allowed to import multiple clips to process at once.
  • You can drag the orange sliders under the preview window to trim your footage and just stabilize the selected part.

3 On the right side, enable "Stabilization", select the "Mode" and "Preset", and then video will be analyzed automatically.

- About Mode:

  • One Pass mode operates faster by analyzing less data, albeit yielding slightly inferior results.
  • Two Pass mode, although slower due to processing more data, offers superior stabilization.
stabilize video

- About Preset:

  • Best Stability: Provides the best video stabilization but involves some cropping.
  • Balanced: Balances video stabilization, cropping, and speed.
  • Fastest: Offers the fastest speed but with average stabilization and some cropping.
  • Minimum Crop: Involves minimal cropping with average stabilization effect.
stabilize video preset

Note: You can also take advantages of the Border Color, Crop Type, and Crop Ratio options to further optimize the stabilized video.

- About Border Color: It defines how the video edge is filled.

  • Default: Uses black color to fill in the edge information.
  • Replicate: Fills in the edge information by replicating edge pixels.
  • Reflect: Copies and fills the edges symmetrically based on adjacent pixels.

It's recommended to choose "replicate" or "reflect" to restore lost edge information.

stabilize video color

- About Crop Type: It defines the method of cropping the frame.

  • Fixed: Suitable for videos with translational shake where the shake frequency is relatively consistent and mild.
  • Dynamic: Suitable for videos with significant shake variations, automatically analyzing the shake frequency to apply different cropping ratios and prevent displacement.
  • Customize: Offers flexible customization of cropping ratios based on user preferences. When CropType is set to "Customize", you can adjust Crop Ratio value. Crop Ratio determines the area of the frame to retain. A higher value crops more, resulting in better stabilization, while a smaller value retains more of the frame, leading to a less effective stabilization. After adjusting the crop ratio value, you can preview the effect in real time.
stabilize video crop

4 Preview the stabilized video and readjust the settings if needed.

Tip: To apply settings to all imported videos, use the "Apply to All" button.

5 Adjust export settings: specify video codec, audio codec, quality level, GOP, and output folder.

Video codecs available include H.264 and HEVC. Audio codecs include Passthrough and AAC. Quality levels range from Low to Highest.

In general, a smaller GOP value typically results in higher quality, although it also increases file size. For videos with minimal motion changes, a GOP value between 90 and 250 is often sufficient. For videos with frequent scene changes, high motion, or intended for post-processing, a typical GOP value falls between 30 and 60.

The default output folder is C:\Users\PC\Videos\Winxvideo AI. Click the "Browse" button to select a different disk.

6 Click the "RUN" button at the bottom right to export the stabilize video(s).

3. Convert
3-1.Convert Video

Before converting video files, you need to enable the video converter first.

video converter

1 Click "+Video" button to import one video or multiple videos (for batch transcoding) into the program.

Add Video into Winxvideo AI

2 Click "Video" tab on the bottom of the interface. Many popular video formats are presented. Select the desired one as output format.

Select Output Format

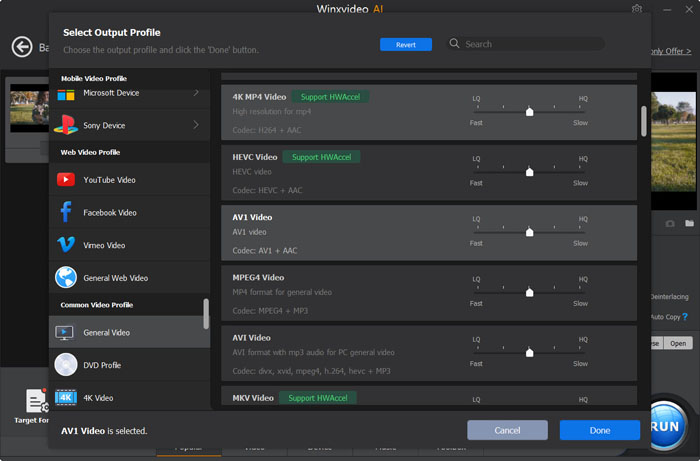

If there is no format you want, click Target Format button to get more profiles.

"General Profiles": Transcode video to H.264, MPEG4, MOV, HEVC, WebM and more.
"Music": Convert video to audio file in MP3, M4A, WAV, FLAC, AAC, iPhone Ringtone etc.
"Mobile Video Profile": Transfer video to Apple, Huawei, Samsung, Android, Microsoft Device and Sony Device.
"Web Video Profile": Make the video compatible with YouTube, Facebook, Vimeo and other online video-sharing sites.
"DVD Profile": Change the format to NTSC/PAL VOB for later DVD burning.
"HD Video": Turn the video to TS, AVCHD, MKV and MPEG HD.

Output Profiles

3 Click "Browse" button to set a new destination folder.

4 Click "RUN" button to start transcoding.

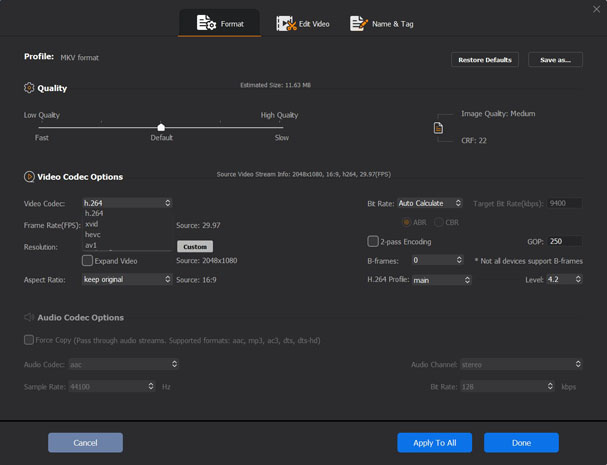

※ Tip: Click Codec Option. Format settings window appears allowing you to adjust parameters.

Codec Option

"Quality": Move the pointer to High Quality for higher image quality or Fast for the fastest transcoding speed.
"Video Codec Options": Modify frame rate, resolution, aspect ratio etc. for obtaining better playback effects.
"Audio Codec Options": Audio channel, sample rate and bit rate can be fine-tuned for outputting Hi-fi audio.

Adjust Parameters
3-2.Convert Audio

1 Click "+Music" button to load a song or several songs into the program.

Add Music into Winxvideo AI

2 Select "Music" tab on the bottom of the interface and output audio formats are listed. Select one as output format.

3 Click "Browse" button to choose a destination folder to save resulting file.

4 Click "RUN" button to start music conversion.

Add Music into Winxvideo AI
3-3. Convert Multi-track Video

• Convert Videos to MKV with Multiple Video/Audio/Subtitle Tracks

1 Launch Winxvideo AI and click "Video Converter" button.

Video Converter

2 Click "+Video" to import at least two videos you want to convert as a multi-track MKV file.

Add Video into Winxvideo AI

3 Move to "Video" tab and select "MKV H264" as output format.

4 Check "Merge" option. Another new option "MKV Multi-track" appears. Check it as well.

5 Click "RUN" to start conversion.

Convert Videos to Multi-track MKV

• Convert Video from Multi-track MKV

1 Click "+Video" to add a multi-track MKV video.

Add Video into Winxvideo AI

2 Move to "Video" tab and select a format as output format, for example "MP4 H264".

Select Output Format

3 Title, video/audio/subtitle tracks are displayed on the left in the video info bar. The number indicates how many video/audio tracks are included in a MKV video.

Click "Video1" to change the track from Video1 to Video2 or keep original. Please note that only one video track can be selected.

Select Video Track for Conversion

Click "Audio1" to select Audio1 and Audio2 or keep one track.

Select Video Track for Conversion

4 Hit "Browse" button to set a new output folder and Click "Run" to start conversion.

4. Compress

If you are going to reduce video file size, take advantages of the Video Compress feature, which allows you to compress large 4K or high-frame-rate video to the target size without compromising too much quality.

4-1. Compress video to specific file size

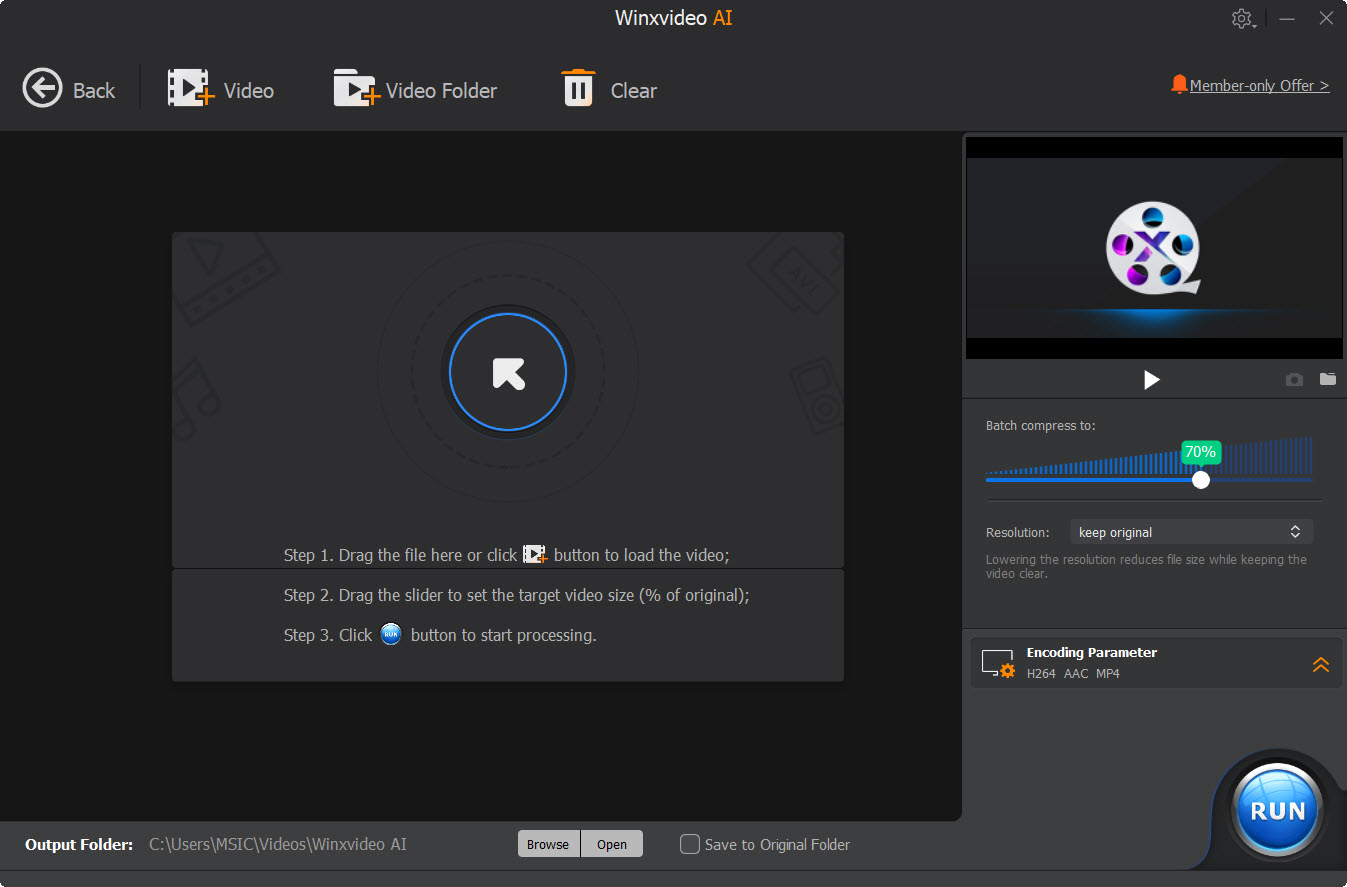

The built-in Compress option in toolkit lets you easily compress video to be up to 90% smaller than original without compromising quality.

1 Drag and drop the source video to the interface, or click "+Video" or "+Folder" to load the video you want to compress.

2 Go to the Toolbox, and find the "Compress".

Winxvideo AI Common Settings

3 Enter the target file size you desire. Or you can drag the slider to change the compression ratio from 10% to 100%.

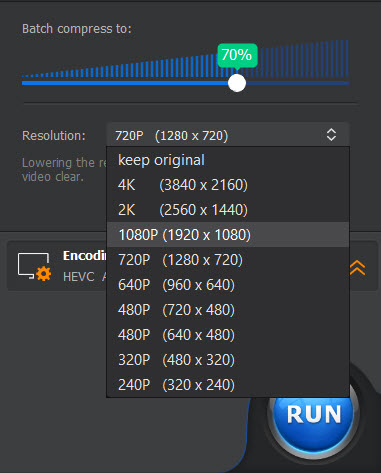

4 Optionally, you can lower down the resolution, or drag the green knobs under the preview window to further cut down video length and downsize the video.

5 Click Done and hit RUN to begin compressing video.

Winxvideo AI Common Settings
4-2. Customize the parameter settings

This program gives you full control over the parameter settings. By adjusting video codec, resolution, bit rate, frame rate, GOP, etc, you can also reduce video file size with acceptable quality.

Please be aware that the program is preloaded with pre-configured profiles with best balance in size and quality, you can rely on the profiles if you don't want to mess around with the settings. But if you are an advanced user, feel free to set the settings for your specific needs.

Option 1. Change Codec

Generally, advanced video codec delivers higher compression ratio and better image quality. For example, HEVC is superior to H.264 and VP9 is better than VP8. So for smaller file size but better quality, you can change video quality to HEVC or VP9.

1 Drag and drop the source video to the interface, or click "+Video" or "+Folder" to load the video you want to compress.

2 Go to the "Target Format", hit "Video", and choose "MP4 HEVC" as the output format.

3 Hit RUN to begin shrinking video size using advanced HEVC codec.

Note: You can also change the codec to VP9 if you are using WebM as the output format. Please make sure to check the box of hardware acceleration and not to check "Auto Copy" option at the right side.

Winxvideo AI Common Settings - codec

Option 2. Lower Bitrate

Video bitrate is closely related to the video file size. Higher bitrate makes better image quality but larger file size. Generally, you can lower the bitrate value than the default quality setting to compress video without perceivable quality degradation. For a 4k video, the recommended bitrate is between 35mbps and 45mbps at standard frame rate and 53mbps and 68mbps at high frame rate. For a FHD 1080p video, the recommended bitrate is between 8-12mbps.

1 Drag and drop the source video to the interface, or click "+Video" or "+Folder" to load the video you want to compress.

2 Click the "Codec Option" where you can change the settings.

3 Drag the Quality slider to the left, which ensures faster processing speed and smaller file size, but produces relatively poor quality compared with the right.

Note: The target bitrate automatically changes as you move the quality slider. Optionally, you can manually set the bitrate to lower value by selecting "Manual" as the "Bit rate" mode, in such way to reduce video file size.

Winxvideo AI Common Settings -quality

Option 3. Reduce video resolution

Video resolution is the number of pixels in a video frame. The more pixels a video has, the more detail it will have and the clearer it will look. But a video of higher resolution such as 4K also involves in bigger file size and may be of no dramastic difference on a small screen like mobile phone compared with a video of lower resolution 1080. You can downsize video by lowering down resolution.

1 Drag and drop the source video to the interface, or click "+Video" or "+Folder" to load the video you want to compress.

2 Click the "Codec Option" where you can change the settings.

3 Find the "Resolution" under the "Video Codec Options" column, choose a video resolution lower than the original one from the drop down list.

Note: You are available to customize the video resolution by clicking the "Custom" button next to the "Resolution".

Winxvideo AI Common Settings -resolution

Option 4. Decrease video frame rate

Video frame rate, also referred to as FPS (frames per second), measures how many frames appear within a second. Higher frame rate generally results in smoother video quality. But when the frame rate is too high, especially in a video without too much motion, it will look unnatural and the video may suffer frame what is called the "Soap opera effect" and big file size. So you can decrease video frame rate to further shrink video.

1 Drag and drop the source video to the interface, or click "+Video" or "+Folder" to load the video you want to compress.

2 Click the "Codec Option" where you can change the settings.

3 Find the "Frame Rate" under the "Video Codec Options" column, choose a desired video frame rate as you want from the drop down list.

Note: Please uncheck the "Auto Copy" option from the right side.

Winxvideo AI Common Settings -fps

Option 5. Increase the GOP

GOP stands for group of picture. In video coding, it is a collection of successive pictures within a coded video stream. A GOP structure includes I-frames (intra-coded frames) and P-frames (predictive coded frames), as well as B-frames (bi-directionally predictive coded frames). Generally, a higher GOP value means more opportunities to compress, and therefore smaller the overall file size.

1 Drag and drop the source video to the interface, or click "+Video" or "+Folder" to load the video you want to compress.

2 Click the "Codec Option" where you can change the settings.

3 Find the "GOP" under the "Video Codec Options" column, choose a desired GOP value as you want.

Note: By default, the GOP is 250, meant to achieve a higher compression rate. If you have a video of low motion, you can leave the value unchanged. Generally, the value between 90 and 250 is OK. But if you have some videos of high motion such as some extreme sports, make sure to set the GOP value between 30 and 60.

Winxvideo AI Common Settings - gop

Note: You can also change the audio settings such as bitrate, sample rate, or channel number to further reduce the video file size.

5. Download
5-1. Download Videos/Audios

1 Click the "Downloader" button to access the Downloader panel.

launch Winxvideo AI downloader

2 Open your browser, find out the video / music you want to download, and then copy its URL.

3 Back to the Downloader, click "Add Video" or "Add Music", and then hit "Paste URL & Analyze" to insert the URL you just copied. The video link will be analyzed instantly.

add video url or add music url

4 Choose desired output quality and format, and click "Download Selected Videos".

choose output video quality

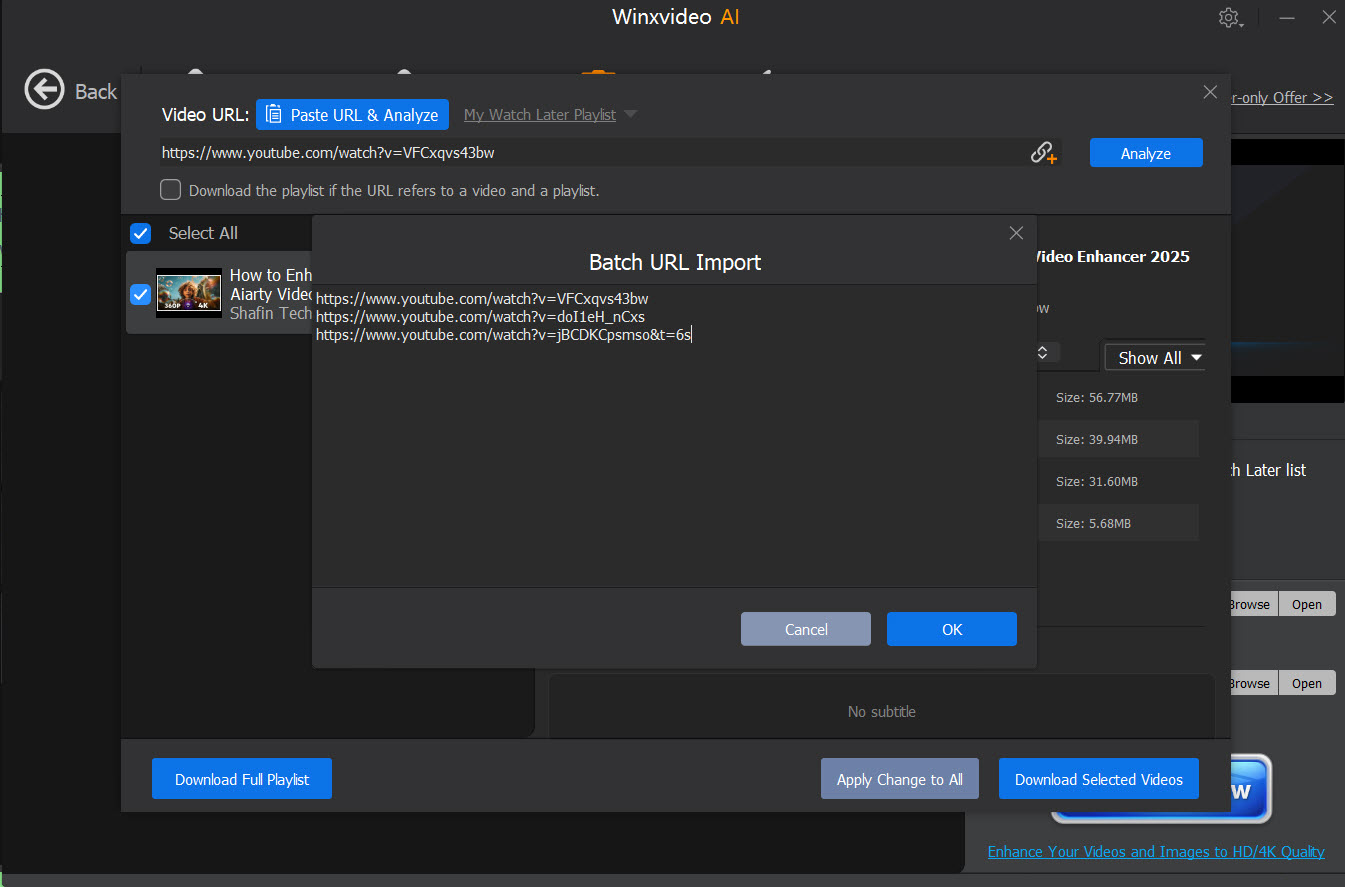

※ Tip: Winxvideo AI allows you to download files in batch. Repeat step 2, 3, 4 to load other video or music files.

5 Click "Browse" to specify output folder based on your own needs. Hit the "Download now" button to start video / music downloading.

start Winxvideo AI to download video/music
5-2. Download Playlist/Channel

1 Click the "Downloader" button to open Downloader tool.

launch Winxvideo AI downloader

Then, click "Add Video" button.

add video url or add music url

2 Open your browser to get the playlist / channel URL, copy it, and then click "Paste URL & Analyze" button to parse the link. Then all videos in the channel or playlist will pop up in the left column. You can select all videos or some of them.

3 Choose the output quality and format.

4 Click "Download Selected Videos" if you just need to download some of the videos. Click "Download Full Playlist" button when all videos are what you want.

select playlist videos to download

5 Hit "Browse" button to set output folder, and "Download now" to get playlist / channel videos download started.

select playlist videos to download
5-3. Download & Record YouTube Live

1 Click "Add Video" button.

2 Search live streaming you want on YouTube and copy the URL. Click "Paste URL & Analyze".

3 Soon, video title and versions will be listed. Select one version.

4 Click "Download Selected Videos".

Download YouTube Live

5 Click the green "Start Recording" button to download and record YouTube live. Also, you can adjust the "Start Time" and "Duration" by clicking the "pencil" icon and stop recording at any time.

Download YouTube Live

※ Tip: You are allowed to download YouTube video with subtitle. Click "Search" button next to Subtitles. It will list available subtitle(s) according to language. Tick it.

5-4. Download M3U8 VOD/Live

M3U8 is a file format for storing playlists for streaming audio and video content over the internet, which uses the HTTP Live Streaming (HLS) protocol to send media content in small, bite-sized chunks that can be downloaded and played one after the other. It plays an important role in live and VOD streaming. You can rely on the program to download M3U8 live and VOD streaming here.

1 Please go to your preferred platform and find an on-demand video.

2 Press the key F12 or you can right click the video page and select "Inspect" to open the Developer Tools.

3 Click the "Network" > "Media" and search .m3u8 till the index.m3u8 files appear.

4 Copy the URL.

Find M3U8 Link

5 Launch the program, also do the same steps above, and copy the M3U8 link to the panel, click Analyze.

6 Hit "Download Now" to start saving M3U8 content.

Note: Downloading any copy-protected content is not recommended. Please check the local law and download online content for fair use.

6. Edit

Click "+Video" button to import one video or multiple videos you want to edit into the program.

Add Video into Winxvideo AI
6-1. Cut a Video

1 Drag your video to the program, or click "+Video" or "+Folder" to add one or more video files.

2 On the Edit Toolbar, click "Cut".

Add Videos for Cutting

3 Drag the green knobs on two ends of the video to set the start and end time positions.

4 Click the orange Cut button on the right and then the middle part between the knobs will be kept.

Add Videos for Cutting

5 Click the Edit icon next to the clip trimmer, then fine-tune the start time and the end time of the clip. And click "Done" to complete the cutting of clip 1.

6 If you need to cut out a different clip, drag green knobs again to set different time position and repeat step 3 – step 5.

7 After cutting into different clips, you can adjust the sequences of the clips by clicking the up and down arrows of each clip.

8 When everything is OK, click the "Done" on the bottom right. The multiple short clips cut from the original video will be merged into a new video.

How to Cut Videos
6-2. Crop Video

1 Click the "Crop" button to open the video cropping window.

How to crop Videos

2 Tick the "Enable Crop" option, and you can see the dot line on the four sides of the original video.
Simply drag the dot line to freely crop the video to remove unwanted areas of the video frame.
Click the "Preset" drop-down icon and you'll get a list of options to automatically crop the video: Crop LetterBox, Keep Current, Keep Origin, 16:9, 4:3, 1:1.
You can also crop the video by setting specific Position and get desired video size.

3 Click "Done" to save the change.

Note: There isn't any quality loss as video cropping won't change format.

Crop Video with Winxvideo AI
6-3. Split a Video

Click "ToolBox", find "Split" button and double click it or hit the "Codec Option" button on the right of the video display column on the "Winxvideo AI - Video" interface to open the Split dashboard.

Splitter Video

※ Tips: By default, Winxvideo AI will split video averagely into 10 segments and split video every 60 seconds.

1 If necessary, trim the video on the left into the duration you need to split.

2 If necessary, change the default segments and time you want.

3 If necessary, fine-tune the start time and end time of individual segment.

4 Click "Done" on the bottom right of the window.

How to Split Video
6-4. Merge Video

You can merge video clips with Winxvideo AI in two ways.

1. Directly merge source videos into one.

1 Click "Video –> +Video" to load all the video clips you'd like to merge into one from computer.

2 Choose a target output format.

3 Tick "Merge" button on the main UI. And click "RUN" to fast merge all added video clips into one file.

Merge Video Clips with Winxvideo AI

2. Trim needed video clips and merge them into one at one go.

1 Click "Video –> +Video" to import all your source videos. Choose a target output video format.

2 Tap one video and click "ToolBox -> Merge -> Codec Option", and you can freely set Start Time and End Time to cut favorite clips from each video. Click "Done".

3 Hit "RUN" button to start fast combining the cut video clips into one.

Trim and Merge Video Clips with Winxvideo AI at One Go
6-5. Trim a Video

Trimming is different from cutting. It only allows you to remove the unwanted start / end part, instead of cutting out any parts of a video.

1 Click "ToolBox", find "Trim" button and double click it or hit the "Codec Option" button on the right of the video display column on the main interface to open the Trim dashboard.

How to Trim Videos

2 Specify the start time by dragging directly or change the time data next to Start Time.

3 Specify the end time by dragging directly or change the time data next to Start Time.

4 Click "Done" on the bottom right of the window.

How to Trim Videos
6-6.Rotate & Flip

You can also take advantages of the tool to rotate video by 90/180/270 degrees as well as flip video at will.

1 Drag and drop the video to the program, or simply click "+Video", "+Folder" to load the files.

2 Click "Rotate" in the Edit toolbar.

How to rotate Videos

3 Rotate the video clockwise or counterclockwise as per your needs. Or you can flip the video vertically or horizontally.

4 Click "RUN" on the bottom right of the window to save the video.

How to rotate Videos
6-7. Subtitle

Download subtitles from 1000+ video sites, extract subtitles from MKV, MP4,etc, and add external subtitle files like ASS, SSA, SRT to your movie, TV episode or any other video you want to burn subtitle in or export subtitle from.

        6-7-1.Add and Import Subtitle from Hard Drive

You have two ways to load an existing subtitle file from your computer or the external hard drive / USB drive that is connected to your computer:

Method 1. On the video display column on the "Winxvideo AI - Video" interface, click "Subtitle" and then click "Load Subtitle" of the dropdown menu. Browse to find and select the corresponding SRT or ASS subtitle file from your computer and click "Open".

Add SRT ASS Subtitle to Video

Method 2. Click "Subtitle" item on the Edit Toolbar. If it is gray, choose an output video format first. On the Subtitle dashboard, click "Add Subtitle File" to load a corresponding SRT or ASS subtitle file from your computer. You can choose "Burn-In" or "Softcode" mode.

Add SRT ASS Subtitle to Video


1. If you choose Burn-In (Hardcode) mode, the subtitle texts are merged in original video frames and when playback there will be no option for you to remove or select the subtitle track. If you choose Softcode mode, the subtitle will be a standalone track in the video so that you will be able to turn off/on subtitle and choose language in multiple subtitle variants during playback.

2. Only in Burn-In mode can "Position" and "Font" be adjusted.

Add SRT ASS Subtitle to Video
        6-7-2. Search and Download Subtitle Online

There are two ways to download subtitles online.

Method 1. Search and download subtitles from Edit toolbox.

1 Click "Subtitle" item on the Edit Toolbar. If it is gray, choose an output video format first. On the Subtitle dashboard, click "Search Subtitle File".

search Online Subtitle

2 Choose "Movie" or "TV Episode" on the top.

3 Set movie name or language if necessary.

4 Click "Search" button and wait a second until the subtitles are searched online.

5 Choose the most likely subtitle and click "Download".

6 Preview the embedded subtitle texts to see if they are corresponding and sync with the video. If yes, click "Done"; if no, go back to the previous operations and try a different one.

Import Online Subtitle

Method 2. Download subtitles from the built-in Video Downloader tool.

1 Open the program and click "Downloader" in the main interface.

2 Copy and paste the URL of the video with subtitle in the bar and click Analyze button.

3 Choose a target language for the subtitle file.

4 Click Down to start downloading subtitles.

        6-7-3. Export Subtitle from Video

1 Add a video that has subtitle, and double click "Export Subtitle" in the ToolBox.

How to Export Subtitle

2 Set the Duration (Start Time and / or End Time) of the video if necessary.

3 Select .srt or .ass as the output subtitle format.

4 Hit "Done" button.

How to Export Subtitle
6-8. Effect

1 Click "Effect" function button labeled in magic wand icon to pop up the video effects controls.

Winxvideo AI Add Effect - 1

2 Preview and choose the video filter effect you like most.

3 You can also ajust video brightness, contrast, hue, gamma, saturation to achieve more satisfied visual effect.

Winxvideo AI Choose and Set Effect
6-9. Watermark

1 Click Watermark in the Edit Toolbar.

Winxvideo AI watermark

2 Click "Enable Watermark" after which you can add watermark as you like.

3 Add text or images to personalize your video. Here you can also adjust transparency, position, font, color, and more.

4 Click "RUN" to save the video with watermark.

Winxvideo AI watermark1
6-10. Video to GIF

1 Navigate to ToolBox and double click the "GIF" button or the setting icon to open up a "Video to GIF" window.

Winxvideo AI Convert Video to GIF

2 Set the loop time, image size, duration, and frame delay.

3 Click Done -> Run to output the animated GIF file.

Winxvideo AI Convert Video to GIF
6-11. Denoise

1 Click "Toolbox" tab and select "Denoise". Double-click Denoise button or hit the gear icon on the top right corner of this button to access to controls.

Denoise Video

2 Move two green cursors to trim the segment which has disturbing noise. Otherwise, manually input Start and End Time.

3 Redefine values of Low Pass and High Pass to reduce the noise.

4 Click "Done"

Noise Reduction Settings
6-12. Lens Correction

1 Click "Toolbox" tab and move the right arrow to find "Fisheye" option. Double-click Fisheye button or hit the gear icon on the top right corner of this button to access to lens correction controls.

Correct Fisheye Lens

2 Move two green cursors to trim the segment which has fisheye effect. Otherwise, manually input Start and End Time.

3 Move the sliders to adjust cx (relative x-coordinate of the focal point of the image), cy (relative y-coordinate of the focal point of the image), k1 (coefficient of the quadratic correction term) and k2 (coefficient of the double quadratic correction term) to remove fisheye lens.

4 Click "Done".

Correct Fisheye Lens
6-13. MKVMaker

1 After loading the video you want to passthrough to MKV, click "ToolBox" tab at the bottom bar and locate "MKVMaker".

Export Subtitle from Video

2 Double click "MKVMaker" if you need to trim source video. You can drag the green knobs to specify start and end time points or manually set "Start Time" and "End Time". Then, hit "Done".

Export Subtitle from Video

3 Hit "RUN", and your video will be immediately converted to MKV without re-encoding. New MKV file will keep original quality, resolution, codec and other parameter settings.

6-14. 3D → 2D

1 When a source 3D stereoscopic video is loaded successfully, head over to the "ToolBox" section, find and double click "3D → 2D" option to access to controls.

Choose 3D to 2D option

2 Choose input 3D format first and then select output 2D/mono video as "left eye only" or "right eye only". You're also free to trim source video to maintain the fragment you prefer.

3 Click "Done" -> "RUN" to convert 3D movie into 2D format in a flash. Thus you can wath 3D film on any 2D screen normally.

3D to 2D Settings

※ Tip: Winxvideo AI is able to make 2D video out of 3D one in the following formats:

- side by side parallel (left eye left, right eye right)
- side by side crosseye (right eye left, left eye right)
- side by side parallel with half width resolution (left eye left, right eye right)
- side by side crosseye with half width resolution (right eye left, left eye right)
- above-below (left eye above, right eye below)
- above-below (right eye above, left eye below)
- above-below with half height resolution (left eye above, right eye below)
- above-below with half height resolution (right eye above, left eye below)
- alternating frames (left eye first, right eye second)
- alternating frames (right eye first, left eye second)

6-15. Snapshot

Winxvideo AI enables you to capture video snapshots in 2 ways.

Method 1:

1 Open Winxvideo AI -> Click "Video" button -> Click "+Video" button to load source video.

2 Tap "ToolBox" and locate "Snapshot" function -> Double-click Snapshot button or click the wheel-like icon at the top-right corner of the button to open the video snapshot window.

Add Video and Click ToolBox and Snapshot

3 Choose picture format (PNG or JPG). Select preferred image size (recommended: keep original). Set picture count (how many pictures you'd like to capture from the video). Then click "Done".

4 Finally hit "RUN" button to start capturing snapshots from video. Once the job is finished, the output folder will auto pop up, and you can find your snapshots folder. In this way, you can catch multiple snapshots one time.

Add Video and Click ToolBox and Snapshot

※ Tips: 1 Winxvideo AI captures one picture per second by default. It will auto calculate the total video time and set the Picture Count. But you can freely change the number.

2 In the preview window, you can also freely drag the two green knobs or set specific Start Time and End Time to cut a preferred video clip for capturing snapshots.

Method 2:

1 After you load your original video, you can see a video preview window on the right, click the arrow "Play" button and the video will begin to play.

2 You can drag the play slider to a particular point. When you see your favorite scene in the video, rightly click the "Camera" icon and Winxvideo AI will auto capture and save the current video scene to computer.

3 Click the "Folder" icon next to camera to open the output picture folder to check the captured video snapshot.

6-16. M3U8

1 Move the mouse on "ToolBox" tab and select "M3U8" option. Double-click the button to enter setting window.

Get M3U8 in ToolBox

2 On the left panel, preview window with progress bar is presented. Move the green cursors or manually input start/end time to trim a clip for exporting as M3U8.

On the right panel, move slider to set "Segment Duration" (5 seconds by default). Tick or untick options "Store all segments in a single MPEG-TS file" and "Allow the client to cache media segment" according to your needs.

3 Click "Done".

Export Video as M3U8 File
6-17. Change Video Speed

With this software, you can also speed up or slow down video playback speed from 0.1x to 16x. Here are the steps.

1 There are two ways to locate the eature. Click the Edit toolbar or simply click Options on the main interface and switch to Edit Video.

2 Go to "Audio & Video", drag the Playback Speed slider to either slow down the video to 0.1x minimally or speed up the video to 16x maximally. Or you can enter the desired speed as you want.

Note: you can enable the box of Recalculate Time Stamp to force A/V sync and therefore avoid audio delay due to the speed change.

Get M3U8 in ToolBox
7. Record

Winxvideo AI allows you to record desktop screen activities, record video with Webcam, and also record screen and webcam at the same time.

7-1. Record Desktop Screen

1 Click "Recorder" button in the main screen, and then get access to Recorder interface.

launch Winxvideo AI's recorder

Click the gear icon at the top right corner and choose "Settings" to make some settings before recording. In the Settings panel, you can reset shortcuts, specify recording quality, recording format, and whether you want to show mouse, mouse clicks, key, and countdown in the screen, and more.

Winxvideo AI record settings

2 Exit Settings window, and then click "Screen" button to load your computer screen.

Winxvideo AI paint tools

3 Click "Crop" button at the bottom left corner to specify the area you want to record. To record the entire screen, you don't need to trouble "Crop".

4 System sound and microphone are turned on by default. Enable or disable audio according to your own needs.

5 Click "REC" button at the lower right corner, then it will begin recording screen within 5 seconds.

If necessary, press Shift, Ctrl, ALT and P keys to open Paint Tools such as drawing arrows, annotations, outlines, notes, etc.

Winxvideo AI paint tools

6 Press Shift, Ctrl, ALT and S keys simultaneously, or click "STOP" button, when you need to finish screen capture.

Winxvideo AI record settings

※ Tips: In addition to recording screen in a single monitor, Winxvideo AI also allows you to record the screens of dual or multiple monitors at the same time.

To record two screens, you need to:

1 Click the drop-down menu of "Crop" and choose a display, "Display 1" for example.

choose display screen to record

2 Click "Crop" and extend the recording region from selected display to the other monitor. Thus, two screens will be covered.

The rest steps follow the same rule of capturing a single screen.

7-2. Record Video with Webcam

1 Click "Recorder" button, and choose "Webcam" to fire up your webcam.

2 Microphone is enabled by default, thus you can record facecam video with your voice.

3 Click "REC" icon to start recording webcam video.

how to record video with webcam

4 Hold down the Ctrl key and R key at the same time, or click "STOP" button, to stop video recording.

stop recording video with webcam
7-3. Make Picture-in-Picture Videos

1 Click "Record" button, and hit "Screen & Webcam" option. Then, you should see two options, namely,

Record screen while showing facecam: screen recording will be the main video and your webcam recording will be a smaller one overlaying the main video.

Record webcam while showing screen: it is contrary to the above one.

choose Screen & Webcam recording mode

2 Click the smaller video, and then hold down your left mouse button to drag it to your desired position. Meanwhile, you can drag the frame to resize its playing window.

3 Click "Crop" button to choose the recording area. If you don't specify it, this tool will capture full screen.

4 Enable or disable system audio / microphone, based on your own needs.

5 Hit "REC" to start recording facecam and screen at the same time and click "STOP" when finished.

start recording screen and webcam with Winxvideo AI simultaneously
7-4.Use Chroma Key feature

You can also take advantages of the Chroma Key feature to replace your recording background with a virtual one.

1 Click "Record" button, and hit "Webcam" or "Screen & Webcam" option.

2 Check the box "Remove webcam background" at the rigth side of the window.

3 Check the "Color Value" here, where you can adjust similarity, Smoothness, Color Spill Reduction, and Opacity to remove the background.

4 Click "Rec" to begin recording webcam with virtual background.

8. Settings

Click the wheel-like "Settings" icon at the top-right on the main UI.

8-1. Common settings

1 Click "Check Update" to check the update information for latest version of Winxvideo AI.

2 Click "About" to check your license information, current version No. of Winxvideo AI, release date, etc.

3 Click "Help" to open the detailed user guide page of Winxvideo AI.

Winxvideo AI Common Settings

4 Enable hardware acceleration: Choose to enable Nvidia/Intel/AMD hardware acceleration engine to accelerate the video processing speed at most. Winxvideo AI will auto check your computer hardware info. Click "Option" button to check it.

5 3 other common settings: Open the output folder when the job is completed; Shut down computer when the job is completed; Notify me when new version is available.

Winxvideo AI Common Settings
8-2. Path for outputs
8-2-1. AI tools

Default media output folder: C:\Users\GIGABYTE\Videos\Winxvideo AI
Optionally click the icon to specify a target computer folder to store the output media of Winxvideo AI.

Winxvideo AI Settings

Default video output folder: C:\Users\GIGABYTE\Videos\Winxvideo AI
Default music output folder: C:\Users\GIGABYTE\Music\Winxvideo AI
Default movie format: MP4, FLV, 3GP, WebM, M4A, MP3. Choose preferred one.
Default resolution: Set default resolution for the downloading video: Highest Resolution, 1080p, 720p, 480p, etc.

Winxvideo AI Downloader Settings
8-2-3. Recorder

Default recording quality: Standard, High.
Default recording format: MP4, FLV, MOV, MKV, TS. Choose one.
Desk audio device: Default, Realtek Digital Output (Realtek High Definition Audio).
Desk audio level: Drag the slide bar to adjust it.
Mic audio device: Default, Realtek Digital Output (Realtek High Definition Audio).
Mic audio level: Drag the slide bar to adjust it.
Encoder: Software (x264), Software (x264 low CPU usage preset). Depend on your computer hardware.
Camera device: Set default camera device, built-in or connected external camera.

Winxvideo AI Recorder Settings
8-3. Default Language

Under General -> Language, you can change the default software language: English, Japanese, German, French, Chinese (Simplified), Chinese (Traditional). Once you choose a language and click "Continue", the software will auto restart.
